How to Repower a Boat: 2-Stroke to 4-Stroke Conversion Guide 🚤

Learning how to repower a boat from 2-stroke to 4-stroke can be a great way to improve fuel efficiency, reduce noise, and modernise an older boat. However, replacing an engine is more than simply removing the old motor and bolting on a new one.

The new outboard must match your boat’s horsepower rating, transom capacity, shaft length, weight, steering system, and overall design. Yamaha’s Australian repower guidance also recommends checking the transom, rigging, controls, wiring, and boat condition before starting the project.

If you’re considering a repower in Australia, here’s what you need to know before making the switch.

🛒 Browse available outboard motors: click here…

Why convert from a 2-stroke to a 4-stroke?

Older 2-stroke outboards are still valued for their simple design and strong power-to-weight ratio. However, modern 4-stroke engines offer several advantages.

Feature	Older 2-Stroke	Modern 4-Stroke
Fuel efficiency	Good	Excellent
Noise	Higher	Lower
Idle smoothness	Moderate	Excellent
Emissions	Higher	Lower
Oil mixing	Usually required	No fuel-oil mixing
Maintenance	Different service needs	Regular oil and filter servicing
Resale appeal	Varies	Generally strong

Modern four-strokes have also become lighter than earlier generations. That makes them more practical for many repower projects than they were in the past.

1. Check your boat’s horsepower rating first ⚙️

Before choosing an engine, check the manufacturer’s capacity plate.

This should tell you the maximum recommended horsepower and, depending on the boat, may provide other capacity information.

Do not simply choose the biggest engine that will fit.

Check	What to confirm
Maximum horsepower	Boat manufacturer’s rating
Engine weight	Suitable for the transom
Shaft length	Matches transom height
Engine configuration	Single or twin
Steering	Compatible with new engine
Rigging	Compatible controls and gauges

If you’re unsure, have the boat inspected by a qualified marine technician before ordering an engine.

2. Inspect the transom 🔧

The transom is one of the most important parts of a repower.

An older boat may have spent years exposed to saltwater, moisture, vibration, and engine torque. A transom that looks fine externally can still have structural problems.

Look for:

• Cracks around mounting points
• Soft or weakened areas
• Water intrusion
• Corrosion around hardware
• Previous repairs
• Movement under engine load

Yamaha specifically recommends checking whether the transom is structurally sound and capable of supporting the replacement engine. Repairs or reinforcement may be necessary before installation.

Why does engine weight matter?

A modern 4-stroke can be heavier than the 2-stroke it replaces. That extra weight sits at the back of the boat.

This can change the boat’s static trim and may lower the stern in the water. In some cases, it can affect scupper height, planing performance, and handling.

So, don’t compare engines by horsepower alone.

Compare their actual published weights for the exact shaft and configuration.

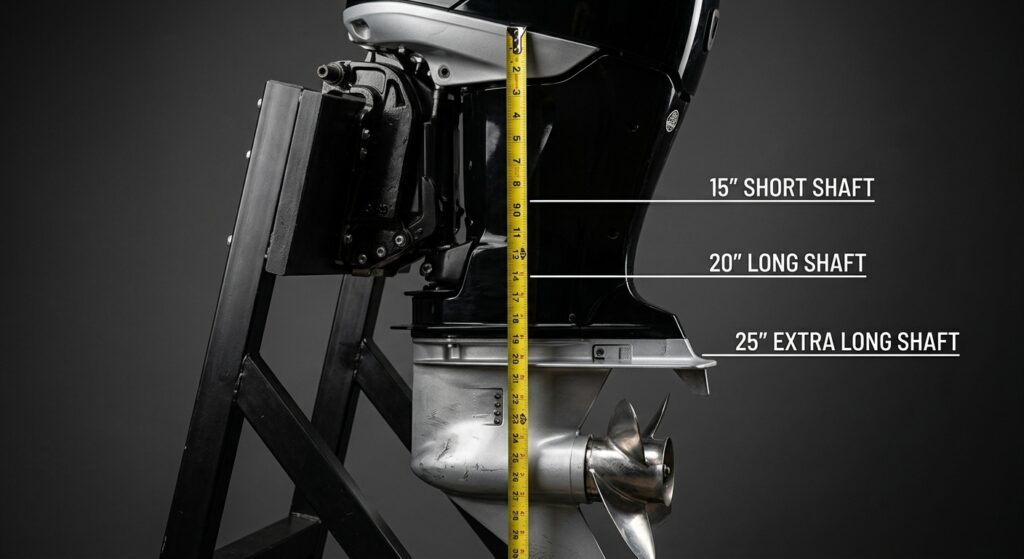

3. Choose the correct shaft length 📏

Shaft length is another critical part of the conversion.

The replacement engine needs to place the propeller and water intake at the correct depth.

The exact requirement depends on your hull and transom design.

An incorrect shaft or mounting height can affect thrust, ventilation, cooling, handling, and fuel efficiency.



4. Remove the old 2-stroke

Once the new engine has been selected, the old 2-stroke and its associated components can be removed.

Depending on the installation, this may include:

• Old control cables
• Throttle and shift controls
• Steering components
• Engine wiring
• Gauges
• Fuel lines
• Oil injection components
• Battery cables

⚠️ Don’t throw away components before confirming what the new engine requires.

Some parts may be reusable, while others should be replaced as part of the repower.

5. Upgrade the rigging

This is where a simple engine replacement can become a complete modernisation project.

Many modern outboards use updated electronic controls, digital gauges, engine-management systems, and different wiring harnesses.

Yamaha notes that a 2-stroke-to-4-stroke conversion will typically require new rigging components such as gauges, throttle controls, wiring, and cables.

Common rigging components include:

• Throttle and shift controls
• Steering system
• Wiring harness
• Engine gauges
• Battery cables
• Key switch
• Trim controls
• Fuel system components
• Digital displays

For larger engines, hydraulic or electronic steering may also be appropriate depending on the boat and engine.

6. Mount the new 4-stroke

Once the transom and rigging are ready, the new outboard can be mounted.

This stage requires precision.

The mounting height must be correct, the engine must be aligned properly, and mounting hardware needs to be installed and sealed according to the manufacturer’s specifications.

Incorrect installation can cause:

• Cavitation
• Poor acceleration
• Excessive drag
• Reduced fuel economy
• Water intrusion
• Transom damage

A recent Mercury repower installation guide also highlights the importance of correct mounting height, alignment, sealing, and torque during installation.

For that reason, engine installation is best handled by a qualified marine technician.

7. Connect the fuel and electrical systems ⛽

A 4-stroke conversion may also require changes to the fuel and electrical systems.

Check:

• Fuel hose condition
• Fuel filters
• Fuel tank condition
• Battery capacity
• Battery cables
• Charging system
• Wiring harness
• Engine connections

Older boats deserve particular attention here.

If the fuel system or wiring is decades old, replacing worn components during the repower can prevent future problems.

8. Select the correct propeller 🌀

Don’t overlook the propeller.

The correct propeller allows the engine to reach its recommended operating range while providing the desired acceleration, cruising performance, and top speed.

Propeller selection depends on:

• Boat weight
• Hull design
• Engine horsepower
• Gear ratio
• Intended load
• Number of passengers
• Typical cruising conditions

A propeller that is too aggressive can prevent the engine from reaching the correct RPM. One that is too light can allow excessive RPM.

Your marine technician or dealer can help select the appropriate propeller for the finished setup.

9. Test the boat before regular use 🌊

After installation, don’t immediately head offshore for a full-day fishing trip.

Start with a controlled test.

Check:

1. Engine starts correctly.
2. Cooling-water flow is normal.
3. Steering operates smoothly.
4. Forward and reverse engage correctly.
5. Trim and tilt work correctly.
6. Gauges display properly.
7. There are no fuel or water leaks.
8. Engine reaches its recommended operating RPM.
9. Boat remains stable at cruising speed.

The first test should ideally take place in a safe area where you can return to shore easily.

2-Stroke to 4-Stroke Repower Checklist

What are the biggest benefits after repowering?

Once properly installed, a modern 4-stroke can transform the boating experience.

⛽ Better fuel economy

Modern EFI four-strokes are designed to deliver efficient fuel delivery across different operating conditions.

🔇 Quieter operation

Four-strokes generally offer a smoother and quieter experience, particularly at idle and cruising speeds.

🚤 Smoother performance

Modern engine management and fuel injection provide consistent starting and throttle response.

🌱 Lower emissions

Modern four-stroke technology can also reduce emissions compared with many older conventional 2-stroke engines.

💰 Improved resale appeal

A newer four-stroke can make an older boat more attractive to potential buyers, although the overall value still depends on the hull, condition, engine, and installation quality.

Yamaha highlights improved fuel economy, quieter operation, acceleration, and modern technology as key benefits of moving from an older two-stroke to a modern four-stroke.

How much does a 2-stroke to 4-stroke conversion cost?

There isn’t one universal price.

The final cost depends on the engine and how much of the boat’s existing equipment can be reused.

A straightforward repower can be relatively simple. However, an older boat requiring transom repairs, new steering, new controls, wiring, gauges, and fuel-system work can become considerably more expensive.

Therefore, get the boat inspected before committing to an engine.

Is converting from 2-stroke to 4-stroke worth it? 🤔

For many boat owners, yes.

A 4-stroke conversion can provide better fuel economy, quieter operation, smoother running, and modern controls. However, the engine must be correctly matched to the hull.

The biggest mistake is choosing an engine based only on horsepower.

Instead, consider the complete package:

Horsepower + weight + shaft length + rigging + transom capacity + intended use.

If those factors are correctly matched, a 2-stroke-to-4-stroke repower can give an older boat a completely new lease on life. 🚤

Final thoughts

Learning how to repower a boat from 2-stroke to 4-stroke starts with choosing the right engine, but the installation itself is equally important.

Check the boat’s horsepower rating. Inspect the transom. Compare engine weights. Confirm shaft length. Plan the rigging. Then have the engine installed and tested correctly.

For Australian boat owners considering a repower, Yamaha, Mercury, Suzuki, Honda, and other major manufacturers offer modern four-stroke options across a wide range of horsepower levels.
